RAINSCREEN SLIDING VENTS

Ivan Jones & Associates, Inc. Images

A vented rainscreen an air gap behind the siding has become a standard detail in many new houses. It helps remove moisture that works its way through the siding, and in the process helps siding last longer.

Choose From 4 Options:

SV-3, SV-5 or Sturdi-Strips


 Images

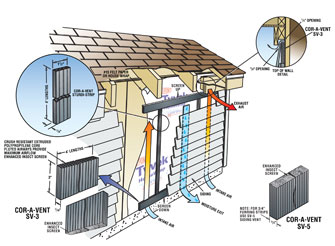

Trapped moisture behind siding can wreak havoc on your home's exterior, causing peeling paint, rotting wood, deteriorating underlayment, and mold or mildew growth. COR-A-VENT SV-3 and SV-5 Siding Vents and Sturdi-Strips allow that moisture to drain out and let air pass through to keep your wall system dry.

Sturdi-Battens


 Images

Sturdi-Batten is a vented batten strip for use with vertical siding, cedar shakes and shingles, or siding panels. Vertically-oriented airways allow both moisture drainage and drying airflow between your siding and housewrap, adding life to your home's exterior.

SV-3 & SV-5

 Images
  • Helps to prevent paint from peeling.
  • SV-3 = 5 Sq. In. NFVA per lineal foot.
  • 7/16" x 3" x 4' cross section.
  • SV-5 = 8.5 Sq. In. NFVA per lineal foot.
  • 3/4" x 3" x 4' cross section.
  • Prevents moisture from being trapped behind the siding.
  • Made from heat resistant polypropylene.
  • Power nailable

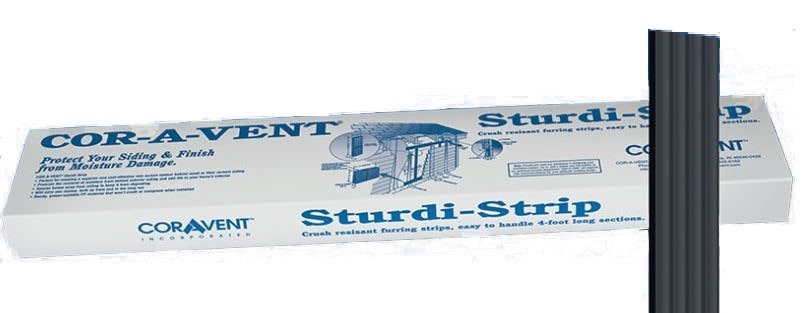

STURDI STRIPS

  • 7/16 thick by 3 high3/8 thick by 1 wide
  • Easy-to-handle 4-foot long sections
  • Pairs great with the SV-3 siding vent, or doubled up to match
  • SV-5 siding vent
  • 112 pcs. per carton (448 lin. feet)
  • Color: Black
  • Heat-resistant: made from profile extruded polypropylene plastic
  • Impact-resistant: screw, staple or power-nail in place
  • Crush-resistant: Will not compress like drainage mat products
  • Pairs great with the SV-3 siding vent, or doubled up to match SV-5 siding vent
 Images

STURDI BATTENS

 Images
  • 7/16 thick by 1 wide
  • Easy-to-handle 4-foot long sections
  • Pairs perfectly with the SV-3 Siding Vent
  • 48 pieces per carton (192 lineal feet)
  • Color: Black
  • Heat-resistant: made from profile extruded polypropylene plastic
  • Impact-resistant: screw, staple or power-nail in place
  • Crush-resistant: Will not compress like "drainage mat" products
